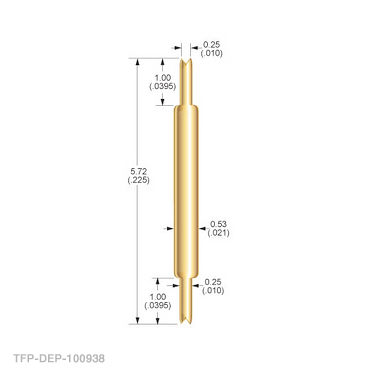

TX-DEP-100938 Double Ended Probe (Crown / Crown)

#100938-001

Device Side Tip: - 0.25 4-pt. Crown

PCB Side Tip: - 0.25 4-pt. Crown

Minimum Pitch: 0.65 (.026)

Signal Path Length: 4.75 (.187)Force per Contact: 31g (1.1 oz.) @ 0.97 (.038) travel

Device Compliance: 0.48 (.019)

DUT Board Compliance: 0.48 (.019)

Operating Temperature: -55¡C to 150¡C Insertions: > 500,000

Typical Resistance: < 70 m½

Current Carrying Capacity: 3 amps continuous (Current DC carry capacity @ 80¡ C steady state) Pattern 2a (RSR): @ 0.65mm pitch

Characteristic Impedance: 50 m½

Time Delay: 31 pSec

Loop Inductance: 1.46 nH @ 0.75pitch

Signal Pin to Return Capacitance: 0.10 pF - 1 dB

Insertion Loss Bandwidth: >2.4 GHz
