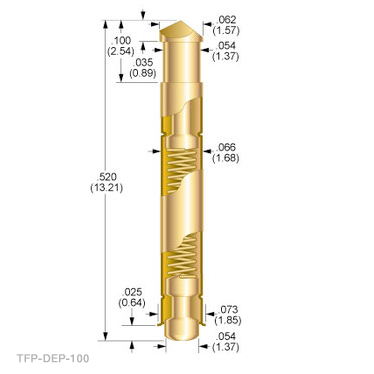

TX-DEP-100 Double-Ended Probe
Hover over image to zoom
Product Description
Tip Style - As Displayed
Minimum Centers: .100 (2.54)
Spring Force: 3.0 - 3.0 oz. @ .050 (1.27) travel
Drill Size: #64 - .0670/.069 (1.70/1.75)
Current Rating: 3 amps continuous (single probe horizontal in air; Temp Rise = 80¡C)
Spring Force: 3.0 oz. @ .050 (1.27) travel
Typical Resistance: < 50 m½
Maximum Travel: .080 (2.03)
Working Travel: .050 (1.27)
