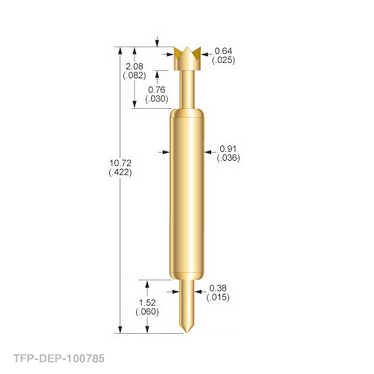

TX-DEP-100785 Double Ended Probe (Spear Tip)

Minimum Pitch: 1.27 (.050)

Signal Path Length: 9.20 (.362)

Force per Contact: 42.5g (1.5 oz.) @ 1.52 (.060) travel

Device Compliance: 0.76 (.030) DUT Board Compliance: 0.76 (.030)

Operating Temperature: -55¡C to 150¡C Insertions: > 250,000

Typical Resistance: < 50 m½

Current Carrying Capacity: 3 amps continuous (Current DC carry capacity @ 80¡ C steady state)

Pattern 2a (RSR): @ 1.27mm pitch

Characteristic Impedance: 41 m½

Time Delay: 47 pSec

Loop Inductance: 1.93 nH

Signal Pin to Return Capacitance: 1.15 pF

- 1 dB Insertion Loss Bandwidth: > 16.2 GHz
