(.050mil spacing) Spring Probe ( .250mil stroke) - TX-TOP050 (Pack of 25 @ $4.62/ea)

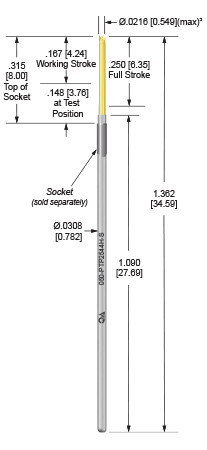

Probe Specifications

Minimum Centers: 1.27mm[0.050inch]
Full Stroke: 6.35mm[0.250inch]
Recommand Stroke: 4.25mm[0.167inch]
Spring Force: 200g[7.054oz]
Impedance: 20milliohms
Current: 3AMP
Temperature: -55? to 120 ?[-67°F to 248°F]
Spring Life: 1000K cycles
Diameter Tolerance: ±0.01mm[±0.39mil]
Length Tolerance: ±0.10mm[±3.93mil]
Straightness Tolerance: 0.05mm[1.97mil]

Materials Specifications

Plunger: SK-4, BeCu, Au plating treatment
Spring: Music wire, Au plating treatment
Barrel: Phosphor Copper, Au plating treatment
