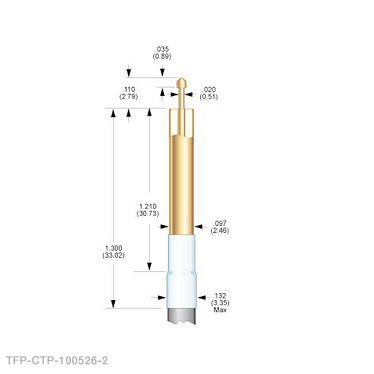

TX-100526-1 Coaxial Test Probe
Hover over image to zoom
Product Description
Cable Length (in inches) - 12 and 36 Inches
Termination: NC - No Connector , AM - SMA Male, AF - SMA Female
Minimum Centers: .150 (3.81)
Current Rating: 3 amps continuous
Spring Force Signal Conductor: 1.6 oz. @ .070 (1.78) travel
Nominal Impedance: 50 ½
Maximum Travel: .090 (2.29) travel
