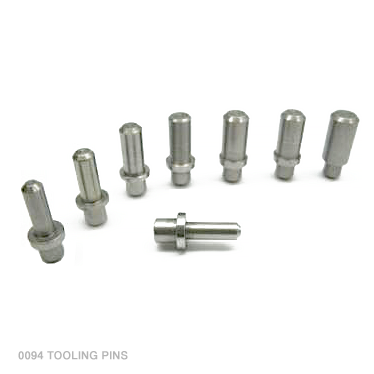

Straight Tooling Pins .605 Length (10 pack)

0094 Series Tooling Pins are used for mounting on a .200" thick top plate.  The pin is secured to the top plate using a #2-56 socket head screw and a #2 flat washer.  See chart  for standard size diameter pins that are in stock.  Custom diameter pins are available upon request.

Item #                Diameter
0094-01                .122

0094-02                .137

0094-3                  .155

0094-4                  .177

0094-5                  .183

0094-06                .215

0094-07                .230

0094-08                .250
