CAMGATE CG-102s 16" x 12" Rail Optional Kit

Hover over image to zoom

  • Image 1
  • Image 2
28.00 LBS
Calculated at checkout

 Product Description

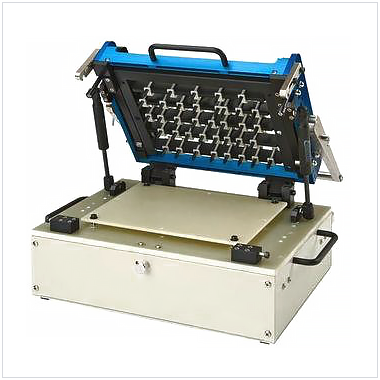

The Z-GATE TEST FIXTURE KIT is built to be durable and accurate. With true Z-AXIS top side cam activation handle, this unit comes complete with adjustable push peg rails, push pegs slide along rails to position in locations clear of components on UNIT UNDER TEST.

Model CG-102s
Maximum Test Area: 12.0"w x 9.0"L
Dimensions: 16.0"w x 12.0"L

Features :
Z-Axis Motion via our patented CAM/TRAC Technology
Easy Access to UUT for debug and Calibration
Latch assembly engages and releases when actuating the clamping assembly
Five piece sheet metal 4" Deep pan design facilitates modification of the pan for installation of connectors, fans and other components
Tooling holes provided to help insure accurate drilling and alignment of plates
Easy assembly and disassembly, Kit ships assembled
