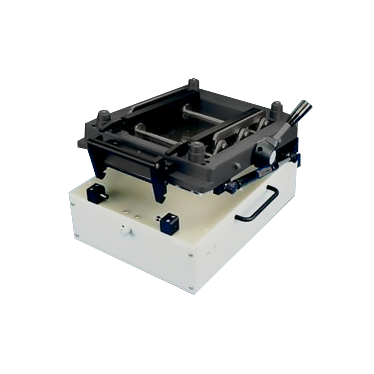

CAM TRAC CT-103S 20" x 16"

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
$2,645.00
Weight:
35.00 LBS
Shipping:
$36.00 (Fixed shipping cost)

 Product Description

The CT Series Mechanical Kits, utilizing the patented CAM mechanism1, offsets the same precision linear motion. The 'Z' axis motion is ideal for larger point count mechanical test applications.The CT Series features a hinged 3/8" FR4 probe board, tooling holes for precision alignment, removable sides, precision shafts and cam slide block assemblies, and a pan latch assembly. All Cam Trac fixtures include gas hinges.


Model CT-103S
Maximum Test Area : 17.0" x 12.5"
Dimensions : 20.0" x 16.0"

Options:
Riser blocks
Microswitch
Draw bar assembly
Lexan or FR4 push plate
1/2" or 3/4" stroke
Upper head assemblies
