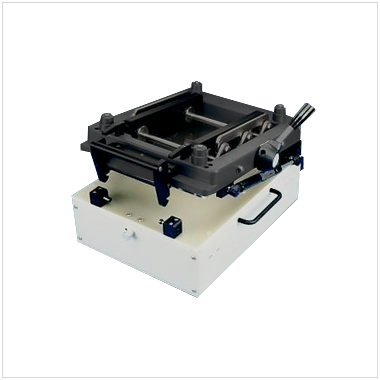

CAM TRAC CT-101 8" X 12"

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
24.00 LBS
Calculated at checkout

 Product Description

The CT Series Mechanical Kits, utilizing the patented CAM mechanism1, offsets the same precision linear motion. The 'Z' axis motion is ideal for larger point count mechanical test applications.The CT Series features a hinged 3/8" FR4 probe board, tooling holes for precision alignment, removable sides, precision shafts and cam slide block assemblies, and a pan latch assembly. All Cam Trac fixtures include gas hinges.

Model CT-101
Maximum Test Area : 6.0"w x 8.5"L
Dimensions 8.0"w x 12.0"L



  •  Riser blocks
  •  Microswitch
  •  Draw bar assembly
  •  Lexan or FR4 push plate
  •  1/2" or 3/4" stroke
  •  Upper head assemblies
