CAM PRESS 9560 - 9.5" x 6.0" UUT

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
35.00 LBS
Calculated at checkout

 Product Description

Comes Standard With:
(Qty 1) LEXAN TOP PLATE (G-10 Optional)
(Qty 1) G-10 PROBE PLATE

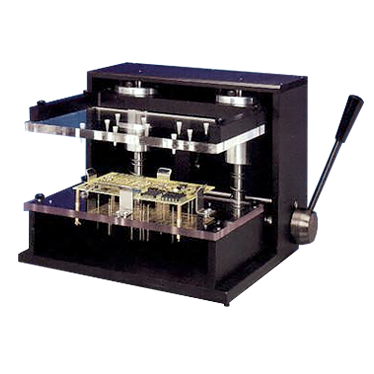

The Cam Press is designed to provide precise, bed-of-nails contact, in a production test environment. Durable aluminum and steel construction and precision bearings insure accuracy and repeat performance sufficient to contact test points as close as 10-mils center-to-center. The Cam Press 9560 offers you the versatility to change out test plates, allowing you to test multiple products on the same fixture base.

Model 9560
Maximum Test Area- 9.5"w x 6.0"L
Maximum Load- 515 Lbs. ( 1500 Standard Force Spring Probes)

Dimensions (WxHxD) - 12"w x 9.25"h x 11.5"d
Weight: 35 Lbs. Approx.

Interchangeable Top and Bottom Test Plates
Top and Bottom Probing
Fine Pitch to .010 Center Spacing
Top and Bottom Access Capability
Linear Z-Axis Cam Motion
No ESD Build-Up
Bearing Life 20 Million Cycles
Solid Aluminum and Steel Construction
