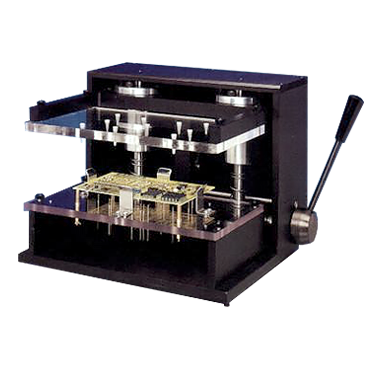

CAM PRESS 1012 - 10" X 12" UUT

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
$3,942.00
Weight:
50.00 LBS
Shipping:
Calculated at checkout

 Product Description

Comes Standard With:
(Qty 1) LEXAN TOP PLATE
(Qty 1) G-10 PROBE PLATE

The Cam Press is designed to provide precise, bed-of-nails contact, in a production test environment. Durable aluminum and steel construction and precision bearings insure accuracy and repeat performance sufficient to contact test points as close as 10-mils center-to-center. The Cam Press 1012 offers you the versatility to change out test plates, allowing you to test multiple products on the same fixture base.


MODEL 1012
Maximum Test Area - 10"w x 12"L
Maximum Load - 86 Lbs. ( 2500 Standard Force Spring Probes)
Dimensions: (WxHxD) 15 1/2"w x 10"h x 16"d
Weight: 50 Lbs. Approx.

Features
Interchangeable Top and Bottom Test Plates
Top and Bottom Probing
Fine Pitch to .010 Center Spacing
Top and Bottom Access Capability
Linear Z-Axis Cam Motion
No ESD Build-Up
Bearing Life 20 Million Cycles
Solid Aluminum and Steel Construction
